Model 6 15.36Kwh ESS Lithium Battery Home Appliances Electric Vehicles Solar Energy Storage Power Wall Battery
Description
ESS lithium batteries are also used in electric vehicles, where they provide a lightweight and efficient source of power for the vehicle's electric motor. They can also be used in backup power systems for critical infrastructure, such as hospitals, data centers, and emergency response systems, ensuring that these systems remain operational even in the event of a power outage.
Home Energy Storage System Specification
| No. | Item | General Parameter | Remark |
| 1 | Material system | Lithium iron phosphate | / |
| 2 | Typical Capacity | 50Ah | 0.5C Standard discharge |
| 3 | Operating voltage range | 2.5~3.65V | / |
| 4 | Nominal Voltage | 3.2V | Mean Operation Voltage |
| 5 | Standard Charge Voltage | 3.6V | By standard charge method |
| 6 | Internal Impedance | ≤0.8mΩ | 1kHz；2%SOC |
| 7 | Dimension | Thickness: ≤37.5mm | Initial Dimension |
| Width:135±1mm |
| Hight:192±1mm |
| 8 | Weight | ≤2.03 Kg | |
| 9 | Standard charge current | 0.5C | 0.5C constant current,3.65V constant voltage charge to 3.65V, continue charging till current decline to ≤0.05C |
| 10 | Maximum Charging Current | 50 A | 25±2℃ |
| 11 | Standard discharge Current | 0.5C | 25±2℃ |
| 12 | Maximum discharge current | 50 A | 25±2℃ |
| 13 | Maximum Discharging Current | 100A(2C) | 25℃, 50%SOC, 30s |

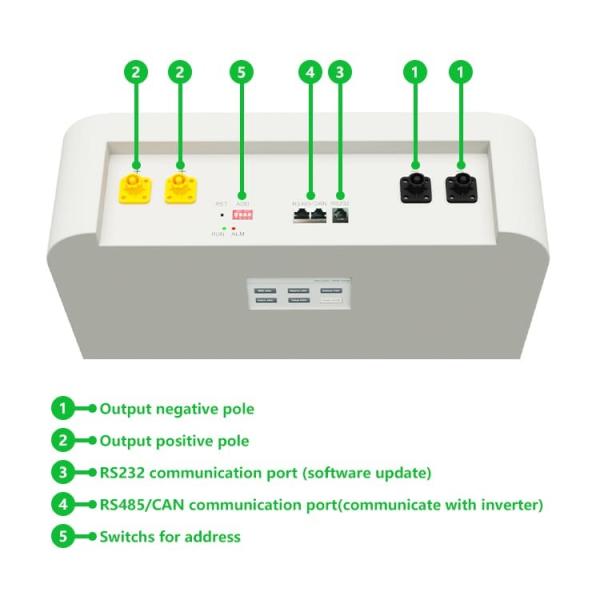

Home Energy Storage System Operation Pannel
Home Energy Storage System Size
Home Energy Storage System Single Battery Pack Wiring Diagram
Home Energy Storage System Parallels Connection Wiring Diagram
FAQ
Q: What is your MOQ?
A: There is no MOQ and we also support a sample service.
Q: How about the payment terms?
A: T/T, Paypal, Wire Transfer and Online Transfer are all acceptable.
Q: Is the battery kit equipped with BMS?
A: Yes, our battery kit comes complete with the BMS and all the accessories needed to assemble the battery pack. Customers can assemble their own battery packs if they have enough batteries.
Q: What options are available for the BMS that comes with the battery kit?
A: 100A/150A/200A BMS are availble for customers to choose.
Q: What are the advantages of your battery kits?
A: Our kits have the following advantages:
⭐Stackable
⭐External port can pass 250A current individually
⭐The internal BMS is compatible with CAN and RS485 communication and can communicate with a wide range of inverters without complex commissioning
⭐The PCB boards are soldered with the corresponding wires for the customer to assemble in order
⭐The external LCD display shows the basic parameters
⭐The side clamping plates apply pressure to the battery for better clamping
⭐Equipped with a weak switch for greater safety
⭐Complimentary 485 adapter cable for connection to the PC
Q: What is the shipping time limit for battery kit?
A:The transit time is approximately 35-38 business days.
Q: What should I do when I receive the battery kits?
A: First open the box when you sign for it to check that the contents have not been damaged in transit, and then double check that the battery kit is complete with all the accessories.
Q: Why has my logistics information not been updated?
A: The goods will be shipped by UPS or a local shipping company, but due to the tedious process of shipping across borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.
feature
1..Flexibleconfiguration
Multiple battery modules canbe in parallel for expandingcapacity and power.
2.Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
3.High efficiency: Lithium-ion batteries are highly efficient, which means that they can convert a high percentage of the energy stored in them into usable electricity.
